Kinetics of arterial carbon dioxide during veno-venous extracorporeal membrane oxygenation support in an apnoeic porcine model
- Pedro Vitale Mendes†1, 2Email author,
- Marcelo Park†1, 2,
- Alexandre Toledo Maciel1, 2,
- Débora Prudêncio e Silva2,
- Natalia Friedrich2,
- Edzangela Vasconcelos Santos Barbosa2,
- Adriana Sayuri Hirota2,
- Guilherme Pinto Paula Schettino1,
- Luciano Cesar Pontes Azevedo1, 2 and
- Eduardo Leite Vieira Costa1, 2
© Mendes et al. 2015
Received: 25 August 2015
Accepted: 20 December 2015
Published: 6 January 2016
Extracorporeal membrane oxygenation (ECMO) is a technique widely used worldwide to improve gas exchange. Changes in ECMO settings affect both oxygen and carbon dioxide. The impact on oxygenation can be followed closely by continuous pulse oximeter. Conversely, carbon dioxide equilibrates much slower and is not usually monitored directly.
We investigated the time to stabilization of arterial carbon dioxide partial pressure (PaCO2) following step changes in ECMO settings in 5 apnoeic porcine models under veno-venous ECMO support with polymethylpentene membranes. We collected sequential arterial blood gases at a pre-specified interval of 50 min using a sequence of standardized blood and sweep gas flow combinations.
Following the changes in ECMO parameters, the kinetics of carbon dioxide was dependent on sweep gas and ECMO blood flow. With a blood flow of 1500 mL/min, PaCO2 takes longer than 50 min to equilibrate following the changes in sweep gas flow. Furthermore, the sweep gas flow from 3.0 to 10.0 L/min did not significantly affect PaCO2. However, with a blood flow of 3500 mL/min, 50 min was enough for PaCO2 to reach the equilibrium and every increment of sweep gas flow (up to 10.0 L/min) resulted in additional reductions of PaCO2.
Fifty minutes was enough to reach the equilibrium of PaCO2 after ECMO initiation or after changes in blood and sweep gas flow with an ECMO blood flow of 3500 ml/min. Longer periods may be necessary with lower ECMO blood flows.
KeywordsAcute respiratory distress syndrome Mechanical ventilation Swine and extracorporeal membrane oxygenation
Extracorporeal membrane oxygenation (ECMO) has been successfully used to support severely hypoxemic patients [1–7]. Despite the worldwide increase in ECMO support use, there are few studies exploring the physiology of polymethylpentene membranes in the veno-venous configuration [8, 9].
After initiation of extracorporeal support, blood flow and sweep gas flow are adjusted to achieve target values of arterial oxygen (PaO2), pH, and carbon dioxide (PaCO2) partial pressures. Titrating these ECMO settings can involve multiple steps because, frequently, the initially chosen parameters will not produce the desired result in terms of blood gases, leading to at least one more cycle of parameter change and blood gas analysis. The whole process has to be repeated whenever the patient condition changes. As a consequence of its lower solubility and lower volume of distribution throughout multiple compartments, PaO2 reaches equilibrium much sooner than PaCO2 . Therefore, in order to optimize the frequency of changes in ECMO settings, it would be of utmost importance to know how long it takes for CO2 to equilibrate after ECMO support initiation or any parameter change.
Based on previous unpublished data, we have hypothesized that a 50-min period would be enough for PaCO2 equilibrium after each change on ECMO settings. Therefore, we conducted this experimental study to analyze the kinetics of arterial partial pressure of carbon dioxide following the changes in ECMO parameters during apnoeic veno-venous ECMO support.
This manuscript is part of a sequence of experiments during porcine respiratory ECMO support, some of which were previously published elsewhere . The study was approved by the Institutional Animal Research Ethics Committee from the Hospital Sírio-Libanês in São Paulo, Brazil, and was done according to the National Institutes of Health guidelines for the use of experimental animals. Instrumentation, surgical preparation, and lung injury were performed as previously described .
Instrumentation and surgical preparation
Five domestic female Agroceres pigs (80 [79,81] kg) were anesthetized with thionembutal (10 mg.kg−1, thiopental, Abbott, Brazil) and pancuronium bromide (0.1 mg.kg−1, Pavulon, AKZO Nobel, Brazil) and connected to a mechanical ventilator (Evita XL Dräger, Dräger, Lübeck, Germany) with the following parameters: tidal volume 8 mL/kg, end-expiratory pressure 5 cmH2O, FiO2 initially set at 100 % and subsequently adjusted to maintain arterial saturation between 94 and 96 %, and respiratory rate titrated to maintain PaCO2 between 35 and 45 mmHg or an end-tidal CO2 (NICO, Dixtal Biomedica Ind. Com, São Paulo, Brazil) between 30 and 40 mmHg. The electrocardiogram, heart rate, oxygen saturation, and systemic pressures of the animals were monitored with a multiparametric monitor (Infinity Delta XL, Dräger, Lübeck, Germany). Central venous pressure (CVP), mean pulmonary artery pressure (PAPm), pulmonary artery occluded pressure (PAOP), and cardiac output (CO) were measured with the use of a pulmonary artery catheter. Anesthesia was maintained with midazolam (1–5 mg.kg−1.h−1) and fentanyl (5–10 mcg.kg−1.h−1), and muscular relaxation was maintained with pancuronium bromide (0.2 mg.kg−1.h−1).
Stabilization and support of the animals
After surgical preparation, we allowed the animals to stabilize for 1 h. A continuous infusion of 3 mL.kg−1.h−1 of lactated Ringer’s solution was infused throughout the experiment. Fluid challenges and vasopressors were used to maintain the mean arterial pressure between 65 and 80 mmHg.
ECMO priming, starting, and maintenance
The ECMO system (Permanent Life Support (PLS) System, Jostra–Quadrox D, Maquet Cardiopulmonary, Hirrlingen, Germany) was primed with a 37 °C normal saline solution and connected to a centrifugal pump (Rotaflow, Jostra, Maquet Cardiopulmonary, Hirrlingen, Germany). Heparin infusion was titrated to keep the activated coagulation time 1.5–2.5 times its baseline value. The absence of significant re-circulation was confirmed by an oxygen saturation of less than 70 % collected from the pre-membrane port [10, 12] 10 min after the beginning of each new sweep gas flow.
Varying ECMO blood flow and sweep gas flow
The animal was kept in apnoea with 10 cmH2O of PEEP and a FiO2 = 1.0 using a concentric coil-resistor PEEP valve (Vital Signs Inc., Totowa, NJ, USA) with a humidified oxygen continuous flow at 10.0 L/min. ECMO blood flow was initially set at 5.0 L/min, and the sweep flow was set at 5.0 L/min. After 10 min, clinical and laboratorial data were collected, and blood flow was reduced to 1500 mL/min, with an initial sweep gas flow = 3.0 L/min. An arterial blood sample was collected every 10 min for up to 30 min; afterwards, an arterial blood sample was collected every 5 min until the new ECMO adjustment was in place for 50 min. Carbon dioxide equilibrium was defined as two blood gas analysis with a PaCO2 variation less than 3 %. Hemodynamic data were also collected along with blood samples. After this step, the blood flow was kept at 1500 mL/min, and the sweep gas flow was set at 1.5 L/min and subsequently at 10.0 L/min in 50-min intervals. Blood flow was then elevated to 3500 mL/min, and a sequence of sweep gas flows of 2.0, 3.5, 7.0, and 12.0 L/min for 50 min each was applied (see Fig. 1). Two different blood flows were chosen in order to evaluate the impact of blood flow in PaCO2 equilibrium. For each ECMO blood flow, sweep gas flow sequence was chosen arbitrarily. However, for a blood flow of 1.5 L/min, we chose an alternating sequence of 3.0, 1.5, and 10 L/min in order to minimize a possible carbon dioxide carry-over phenomenon.
Time to equilibrium–time constant (tau) determination
where t is the time in minutes, e corresponds to Euler’s number, tau is the time constant obtained for each flow combination, and a and b correspond to constants used in the model.
Blood oxygen content CbO2 [mL O2/100 mL of blood] = 1.36 × Hb × SatbO2 + 0.0031 × PbO2
O2 transfer [mL/min] = (1.36 × Hb × (After - pre-membrane SatO2) + 0.0031 × (After - pre-membrane PO2)) × ECMO blood flow
CO2 transfer [mL/min] = (CO2 partial pressure of the exhalation port of the membrane/barometric pressure) × sweep flow in mL/min
Blood CO2 content [mL/min]  = (1 − ((0.0289 × Hb)/(3.352 − 0.456 × (SatbO2/100) × (8.142 − pHb)))) × 2.226 × 0.0307 + (0.00057 × (37 − temperature)) + (0.00002 × (37 − temperature)2) × PbCO2 × (1 + 10 (pHb − 6.086) + (0.042 × (7.4 − pHb)) + ((38 − temperature) × 0.00472 + (0.00139 × (7.4 − pHb))))
Oxygen delivery DO2 [mL O2/min] = cardiac output × CaO2 × 10
Oxygen consumption VO2 [mL O2/min] = C(a − v)O2 × cardiac output × 10
Standard base excess [SBE - mEq/L] = 0.9287 × (HCO3− − 24.4 + 14.83 × (pH − 7.4))
Normality was assessed by the Shapiro-Wilk test. Variables are shown as mean ± standard deviation if normally distributed and median and the 25th and 75th percentiles if otherwise. Percent variations of PaCO2 at the end of the 50-min observations in each sweep gas flow were normally distributed and compared with the paired t test. The R free source statistical package and comprehensive-R archive network (CRAN)-specific libraries were used to build the graphics and analyze the data .
Physiological variables after 50 min of sweep or blood flow modifications
Blood flow = 1500 mL/min
Blood flow = 3500 mL/min
CaO2 (mL O2/100 mL of blood)
CaCO2 (mL CO2/100 mL of blood)
Pulmonary shunt (%)
O2 transfer (mL/min)
CO2 transfer (mL/min)
Heart rate (bpm)

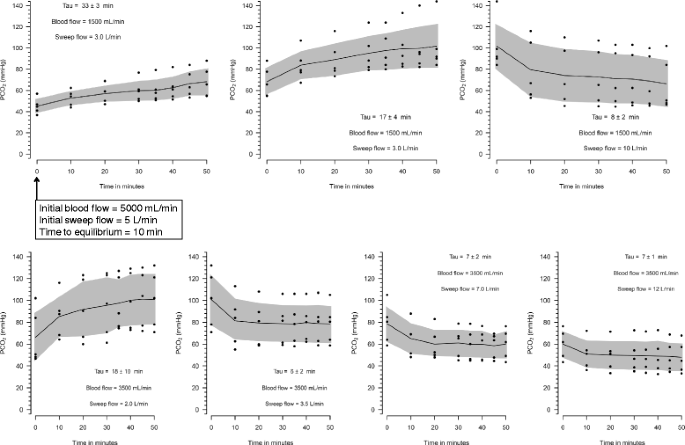

In all conditions tested, carbon dioxide had a long time to equilibrium after changes in ECMO settings. With an ECMO blood flow of 1500 mL/min, increases in sweep gas flow beyond 3.0 L/min did not significantly affect PaCO2. With an ECMO blood flow of 3500 mL/min, all increments of sweep gas flow up to 12 L/min resulted in additional reductions of PaCO2. CO2 equilibrium was faster with higher blood and sweep gas flows.
Unlike oxygen, which has a fast time to equilibrium and can be monitored by pulse oximetry at the bedside , CO2 requires serial arterial blood gases measurements. Differently from our initial expectative, we found long time constants for CO2 equilibrium with a blood flow of 1500 mL/min, suggesting that late (>50 min) assessments of arterial blood gases are usually necessary to capture the full impact of new ECMO settings in low ECMO blood flow states. Furthermore, this finding is also explained by the large volume of distribution of CO2 , also stored as bicarbonate, bound to hemoglobin, and dissolved in the peripheral tissues [14, 18, 19]. The plasma dissolved fraction (PaCO2) actually accounts for less than 5 % of the total body storage of CO2. Therefore, small variations in PaCO2 represent large total CO2 variations . Because the changes in CO2 elimination are small in relation to its volume of distribution, the time to equilibrium is expected to be long. Moreover, after the elevation of effective ventilation, the reduction of the PaCO2 will depend mainly of the effective ventilation and volume of CO2 distribution; and after the reduction of effective ventilation, the elevation of PaCO2 will depend of the volume of distribution and of the CO2 production. The last depends on other variables such as temperature, sedation, inflammatory status, etc. Additionally, the interchange among the different molecular forms of CO2 depends on other modulators, such as temperature, local pH, carbonic anhydrase activity, and others [19, 21]. Thus, the time to PaCO2 equilibrium is a complex function derived from the combination of many variables. In this study, a 50-min period was sufficient to achieve the PaCO2 equilibrium in all sweep gas flow tested only with a blood flow of 3500 mL/min, otherwise in using 1500 mL/minute of blood flow, it may take as long as 90 min to reach the equilibrium.
We kept the animals apnoeic to restrict the elimination of CO2 to the ECMO system. With the subjects ventilating, even with a constant minute alveolar volume, changes in alveolar elimination of CO2 are important, because alveolar elimination depends on both alveolar CO2 concentration and alveolar minute ventilation . We reasoned that the apnoeic model would better reflect the isolated effects of changes in ECMO settings. In Table 1, it is possible to note that CO2 transfer and production varied importantly between study steps and, more importantly, with an ECMO blood flow of 1500 mL/min. We attribute this finding mainly to the absence of CO2 stabilization throughout the phase 1 study period, instead of marked change on CO2 production between steps. Moreover, a variation on cardiac output and unstable animal conditions may have contributed to this finding.
At low ECMO blood flow (1500 mL/min), we found that CO2 elimination had a ceiling effect at sweep gas flow of 3.0 L/min with higher gas flows exerting no significant impact on PaCO2. This finding suggests that post-membrane CO2 was already very low with the sweep gas flow of 3.0 L/min, and that CO2 transfer was thus perfusion limited. This implies that, due to its high diffusibility, a very low CO2 partial pressure (its dissolved fraction) can be reached early during the passage of blood through the ECMO membrane, limiting CO2 elimination independently of the sweep gas flow. This finding is of great interest in situations in which ECMO is used mainly for hypercapnia or in low flow devices, such as ECCO2R removal technologies.
Our study has several limitations: (1) The low number of animals could lead to type-II errors, attenuating the validity of our results. However, such a limitation would not affect our positive findings. (2) We did not study animals with multi-organ failure syndrome, a condition likely closer to a clinical scenario. However, many positive associations will be intuitively the same. (3) As presented in Table 1, we observed a progressive decrease in hemoglobin concentration throughout the experiment. Considering that hemoglobin acts as a CO2 reservoir, this may have influenced the results. (4) We did the analysis with a static 50-min period to gas equilibrium. With low ECMO blood flows, it was not enough for PaCO2 to reach the equilibrium and, therefore, definitive time to equilibrium for such situation remains unknown. Moreover, it is possible that late inter-compartment distributions may occur, affecting our results.
In conclusion, our results suggest that 50 min was enough to reach the equilibrium of PaCO2 after ECMO initiation or after changes in blood and sweep gas flow with an ECMO blood flow of 3500 mL/min. Longer periods are necessary to reach the equilibrium with an ECMO blood flow of 1500 mL/min. This may help bedside decisions and facilitate daily management of patients during ECMO support.
- CO2 :
extracorporeal carbon dioxide removal
extracorporeal membrane oxygenation
- O2 :
- PaCO2 :
arterial carbon dioxide partial pressure
- PaO2 :
arterial oxygen partial pressure
positive end expiratory pressure
- SatO2 :
arterial oxygen saturation
