Hypercapnic acidosis attenuates pulmonary epithelial stretch-induced injury via inhibition of the canonical NF-κB pathway

Intensive Care Medicine Experimental volume 4, Article number: 8 (2016) Cite this article

Abstract

Background

Hypercapnia, with its associated acidosis (HCA), is a consequence of respiratory failure and is also seen in critically ill patients managed with conventional “protective” ventilation strategies. Nuclear factor kappa-B (NF-κB), a pivotal transcription factor, is activated in the setting of injury and repair and is central to innate immunity. We have previously established that HCA protects against ventilation-induced lung injury in vivo, potentially via a mechanism involving inhibition of NF-κB signaling. We wished to further elucidate the role and mechanism of HCA-mediated inhibition of the NF-κB pathway in attenuating stretch-induced injury in vitro.

Methods

Initial experiments examined the effect of HCA on cyclic stretch-induced inflammation and injury in human bronchial and alveolar epithelial cells. Subsequent experiments examined the role of the canonical NF-κB pathway in mediating stretch-induced injury and the mechanism of action of HCA. The contribution of pH versus CO2 in mediating this effect of HCA was also examined.

Results

Pulmonary epithelial high cyclic stretch (22 % equibiaxial strain) activated NF-κB, enhanced interleukin-8 (IL-8) production, caused cell injury, and reduced cell survival. In contrast, physiologic stretch (10 % strain) did not activate inflammation or cause cell injury. HCA reduced cyclic mechanical stretch-induced NF-κB activation, attenuated IL-8 production, reduced injury, and enhanced survival, in bronchial and alveolar epithelial cells, following shorter (24 h) and longer (120 h) cyclic mechanical stretch. Pre-conditioning with HCA was less effective than when HCA was applied after commencement of cell stretch. HCA prevented the stretch-induced breakdown of the NF-κB cytosolic inhibitor IκBα, while IκBα overexpression “occluded” the effect of HCA. These effects were mediated by a pH-dependent mechanism rather than via CO2 per se.

Conclusions

HCA attenuates adverse mechanical stretch-induced epithelial injury and death, via a pH-dependent mechanism that inhibits the canonical NF-κB activation by preventing IκBα breakdown.

Background

Acute respiratory distress syndrome (ARDS) is a devastating disorder that has high mortality rates [1]. ARDS is characterized by pulmonary edema, hypoxemia, and severe inflammation of the lung parenchyma [1]. Mechanical ventilation, while life-saving, can cause additional lung damage due to repetitive cyclic mechanical stretch of the lung resulting in increased inflammation and lung tissue injury—this is termed “ventilator induced lung injury” (VILI) [2]. Protective ventilator strategies, that reduce the potential for excessive lung stretch, have been demonstrated to improve outcome [3] and now constitute the standard of care for these patients [4]. However, reducing tidal and minute ventilation results in less effective CO2 clearance. The resulting hypercapnic acidosis (HCA) is termed “permissive hypercapnia” and is not traditionally considered to have an active role [5, 6].

Previous pre-clinical studies, from our group and others, have demonstrated that HCA may exert protective effects in models of ARDS induced by free radicals [7], endotoxin [8], both primary [9, 10] and secondary [11] ischemia-reperfusion, and high lung stretch [12, 13]. HCA can also exert deleterious effects, including delayed plasma membrane re-sealing [14] and reduced pulmonary epithelial wound closure [15]. While HCA exerts beneficial effects in early lung injury [16–18] and systemic sepsis [19, 20], prolonged HCA may retard bacterial killing and worsen pneumonia-induced lung injury [21, 22].

These effects of HCA may be mediated at least in part via inhibition of nuclear factor kappa-B (NF-κB), a pivotal regulator of genes central to lung injury, inflammation, and repair [23–26]. Our group has demonstrated that HCA attenuates VILI severity in vivo, potentially via inhibition of NF-κB signaling [27]. HCA also attenuated cyclic mechanical stretch-induced inflammation injury and reduced NF-κB activation [27]. Most recently, we have demonstrated the effects and mechanisms by which HCA modulates the canonical NF-κB pathway in sepsis-induced lung injury [28].

In the current studies, we wished to further elucidate the role of the NF-κB pathway in mediating the protective effects of HCA in stretch-induced injury. Specifically, we hypothesized that (1) HCA would attenuate stretch-induced cell inflammation and injury and improve cell survival in both the bronchial and alveolar epithelium; (2) that the protective effects of HCA seen in early stretch would persist in the setting of prolonged cyclic mechanical stretch; (3) that the effects of HCA on stretch would be mediated via inhibition of the NF-κB pathway; and (4) the effect of HCA would be mediated by a pH (i.e. acidosis) rather than a CO2 effect per se.

Methods

Pulmonary epithelial cell cultures

Human bronchial epithelial cells (HBE and BEAS-2B lines) and type II alveolar A549 cells were used in all experiments. BEAS-2B cells (ATCC®, Manassas, VA, USA) are a cell line derived from normal bronchial epithelium, immortalized using a replication-defective SV40/adenovirus 12 hybrid, and cloned. These cells were subcultured in growth medium (Dulbecco’s Modified Eagle’s Medium/Nutrient F12 Ham; Sigma-Aldrich Co., Dublin, Ireland), supplemented with 10 % fetal calf serum, penicillin G (100 U/mL) and streptomycin (100 μg/mL) at 37 °C in a humidified incubator saturated with a gas mixture containing 5 % CO2 in air, and used at passages 5–15. The 16HBE14o-(HBE) transformed epithelial cell line was a gift from D. Gruender (University of Vermont, Burlington, VT, USA) as cryopreserved passage 1 culture and used at passages 4–14. These are virally immortalized primary human cells which form correctly polarized cell layers in vitro [29]. These cells were subcultured into growth medium (Minimum Essential Medium, Alpha Modification; Sigma-Aldrich Co.), supplemented with 10 % fetal calf serum, penicillin G (100 U/ml) and streptomycin (100 μg/ml).

A549 cells were purchased from The European Collection of Cell Cultures (Porton Down, UK) as cryopreserved 90-passage culture and used at passages 91–95. All A549 cells and derivatives were passaged in growth medium (RPMI-1640; Sigma-Aldrich Co.), supplemented with 10 % fetal calf serum, penicillin G (100 U/mL), and streptomycin (100 μg/mL) at 37 °C in a humidified incubator saturated with a gas mixture containing 5 % CO2 in air. In some experiments, the A549/NF-κB-luc cell line, which incorporates a chromosomally integrated luciferase reporter of NF-κB transcription factor activity, was used (P/N LR0051; Panomics, Fremont, CA, USA). To obtain this cell line, A549 cells were co-transfected with pNF-κB-luc and pHyg followed by hygromycin selection. Hygromycin-resistant cell clones were selected using a functional tumor necrosis factor-α (TNF-α) assay that induces luciferase activity. In another experimental series, the A549/NF-κB-luc cell line was stably transfected with an IκBα super-repressor under the control of a chicken β-actin promoter and then selected with G418 antibiotic (Sigma-Aldrich Co.). This super-repressor ensures that IκBα cannot be phosphorylated and hence canonical NF-κB activation is inhibited. Clones were evaluated based on their ability to prevent IL-1β (10 ng/ml) induction of the luciferase reporter (Additional file 1: Figure S1).

Pulmonary epithelial cyclical stretch injury model

HBE, BEAS-2B or A549/NF-κB-luc cells were seeded to Bioflex six-well plates (Flexcell International, Hillsborough, NC, USA) at 6 × 104 cells/cm2, incubated for 48 h, and re-fed with fresh complete medium. They were then mounted onto the Flexcell FX-4000 T® Tension Plus® baseplate (Flexcell International) where they were pre-conditioned in either normocapnic (5 % CO2) or hypercapnic conditions (15 % CO2) for 1 h before being subjected to 22 % equibiaxial stretch at a frequency of 0.1 Hz for 24 and 120 h under their respective conditions. Non-stretched cells under identical atmospheric conditions were used as controls for these experiments, based on our demonstration that physiologic stretch did not produce any evidence of cell inflammation or injury (Additional file 1: Figure S2).

Experimental design

Series 1–2: effect of HCA on bronchial epithelial stretch-induced injury

HBE (series 1) and BEAS-2B (series 2) confluent epithelial layers were equilibrated in normocapnia or HCA and then subjected to injurious cyclic stretch (i.e., 22 % equibiaxial stretch at a frequency of 0.1 Hz in the Flexcell FX-4000T®) for 24 h. The potential for HCA to attenuate stretch-induced inflammation, maintain cell membrane integrity, and enhance cell survival in HBE and BEAS-2B epithelial layers was then determined.

Series 3–4: effect of HCA on alveolar cell stretch injury

Confluent alveolar epithelial A549/NF-κB-luc cell layers were equilibrated in normocapnia or HCA and then subjected to injurious cyclic stretch for 24 (series 3), or 120 (series 4) h, and the effect of HCA was assessed as described above.

Series 5: effect of pre- versus post-conditioning with HCA

Confluent A549/NF-κB-luc cell layers were allocated to normocapnia, HCA pre-incubation followed by normocapnia during cyclic stretch (“HCA-pre”), HCA at the commencement of cyclic stretch (“HCA-post”), or HCA prior to and during stretch (“HCA-combined”). All epithelial layers were subjected to cyclic stretch for 120 h.

Series 6: mechanism of action of HCA on stretch-induced NF-κB

The effect of cyclic stretch and HCA on inhibitory-κB-alpha (IκBα), the canonical NF-κB cytosolic inhibitor, was examined. Briefly, A549 monolayers were equilibrated in normocapnia or HCA and then subjected to cyclic stretch for 0, 30, 60, and 120 min, and cytosolic concentrations of IκBα were determined.

The potential for IκBα overexpression to attenuate stretch injury and “occlude” the effects of HCA was then determined. Stably transfected A549/NF-κB-luc cells overexpressing IκBα (methods described above) were seeded to laminin coated Bioflex six-well plates at 6 × 104 cells/cm2 and left to reach confluent monolayers for 48 h. These cells were then washed, re-fed, and pre-conditioned as described above before being subjected to injurious cyclic stretch for 120 h.

Series 7: acidosis versus CO2 on stretch-induced epithelial injury

Metabolic acidosis was produced by adding strong acid (0.02 M Hydrochloric acid) to titrate media pH to that seen with HCA conditions, i.e., 7.1, when incubated in normocapnia. Buffered hypercapnia (BHA) was produced by buffering media pH to normal under hypercapnic conditions using 0.04 M sodium bicarbonate. Finally sodium chloride (either 0.04 or 0.02 M) was added to all groups to ensure that all groups were equi-osmolar. These groups were then subjected to injurious cyclic stretch as described above.

Assessment of NF-κB activity, inflammation, and cell viability

At the end of each experiment, medium was harvested and the cells scraped from each well into 1 mL of phosphate buffered saline (PBS). Cells were pelleted at 400×g for 5 min and resuspended in 1 mL of fresh PBS.

NF-κB activity

Five hundred microliters of intact harvested cells were pelleted at 400×g for 5 min and resuspended in 100 μL of Reporter Lysis Buffer (Promega Corp., Madison, WI, USA), before being subjected to a freeze/thaw cycle. Forty microliters of cell lysate was mixed with 40 μL of Bright-Glo luciferase substrate (Promega Corp.) and luminescence assessed in a VICTOR™ X plate reader (Perkin Elmer, Waltham, MA, USA) [15].

Cytosolic IκBα assessment

Three hundred microliters of intact-harvested cells were pelleted at 400×g for 5 min and resuspended in 50 μL of 1× Laemmli SDS-PAGE buffer (0.1 % 2-mercaptoethanol, 0.0005 % bromophenol blue, 10 % glycerol, 2 % SDS, 2 %, 63 mM Tris-HCl pH 6.8) and heated to 100 °C for 2 min. Proteins were separated on polyacrylamide gels (Pierce Biotechnology, Rockford, IL, USA), transferred to nitrocellulose membranes, blocked, and probed using anti-total IκBα (Cell Signaling Technology) and secondary-HRP (Sigma-Aldrich Co.) antibodies in 5 % (w/v) milk powder-PBS. Membranes were soaked in chemiluminescent substrate (Pierce Biotechnology) and imaged.

For IκBα ELISA, cells were scraped into 1 mL of ice-cold PBS, pelleted at 500×g for 5 m and resuspended in 100 μL of 1 % Triton (v/v) in PBS with protease inhibitors (Pierce protease inhibitor mini tablets, EDTA-free; Fisher Scientific Ireland Ltd, Dublin, Ireland). A BCA protein assay was performed and equal quantities of protein added to a PathScan® Total IκBα Sandwich ELISA (Cell Signaling Technology, Danvers, MA, USA) as per manufacturer’s instructions. Total IκBα present was expressed as fold of the control no-stretch group.

Viability assay

Fifty microliters of intact harvested cells were added to a 96-well plate. One hundred microliters of methylthiazolyldiphenyl-tetrazolium bromide (MTT; Sigma-Aldrich Co.) solution (100 μg/mL in complete medium) was added to each well, and the plate returned to a tissue culture incubator (5 % CO2) for 2 h. The media and MTT solution was removed, 100 μL of dimethyl sulfoxide (DMSO) was added to each well, the plates were left on an orbital mixer for 30 min, and absorbances read in a VICTOR™ X plate reader at 550 nm wavelength [30].

LDH assay

Epithelial injury was assessed by measuring lactate dehydrogenase (LDH), an intracellular enzyme that when present in the medium reflects the extent of epithelial cell damage and lysis. Fifty microliters of harvested medium was used with the CytoTox 96 Non-Radioactive Cytotoxicity Assay Kit (Promega Corp.) to assess LDH release.

IL-8 ELISA

Epithelial inflammation was assessed by quantifying the secretion of the NF-κB-dependent cytokine IL-8. The medium was assessed for cellular secretion of IL-8 using an IL-8 sandwich ELISA DuoSet kit (R&D Systems Inc., Minneapolis, MN, USA) as per manufacturer’s instructions.

Data presentation and analysis

All data was analyzed using a one-way analysis of variance, with group as the factor. Post hoc analysis was carried out with the Student-Newman-Keuls test or Mann-Whitney U test with the Bonferroni correction for multiple comparisons, as appropriate. The assumptions underlying all models were checked using suitable residual plots. A p value of <0.05 was considered statistically significant.

Results

HCA inhibits bronchial epithelial stretch-induced injury

Twenty-four hours of cyclic cell stretch induced the release of pro-inflammatory IL-8 in both HBE (Fig. 1a) and BEAS-2B (Fig. 1b) bronchial epithelial layers, and this was inhibited by HCA. HCA abolished cell stretch-induced cell membrane injury and rupture, as reflected by medium LDH concentrations, in both HBE (Fig. 1c) and BEAS-2B (Fig. 1d) epithelial bronchial cultures. HCA also attenuated cell stretch-induced cell death, in HBE (Fig. 1e) but not in BEAS-2B (Fig. 1f) epithelial bronchial cultures.

Fig. 1
figure 1

HCA inhibits bronchial epithelial stretch-induced injury. Hypercapnic acidosis decreased 24-h stretch-induced interleukin-8 secretion (a, b), preserved membrane integrity as assessed by epithelial LDH leakage (c, d), and maintained cell viability (e, f) in human bronchial epithelial cells and BEAS-2B cells, respectively. Note: *P < 0.05 versus normocapnia for each condition

Full size image

HCA inhibits prolonged alveolar epithelial stretch-induced injury

Cyclic stretch-induced a progressive activation of NF-κB at 24 and 120 h in A549 epithelial layers. HCA potently inhibited stretch-induced NF-κB activation at each time point (Fig. 2a). Cyclic stretch enhanced alveolar epithelial IL-8 secretion at 24 and 120 h, and this was attenuated by HCA at each time point (Fig. 2b). HCA abolished cyclic stretch-induced cell membrane injury at each time point (Fig. 2c). The progressive decrease in cell survival induced by cell stretch at 24 and 120 h was also abolished by HCA (Fig. 2d).

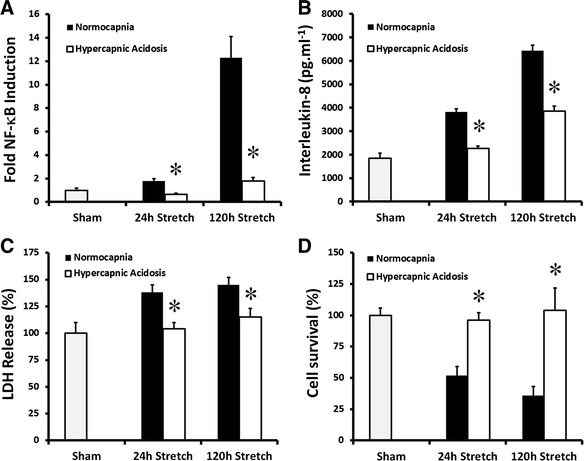

Fig. 2
figure 2

HCA attenuates alveolar epithelial injury following 24 and 120 h of cyclic mechanical stretch. HCA decreased stretch-induced activation of NF-κB (a), attenuated IL-8 secretion (b), reduced epithelial LDH leakage (c), and maintained cell viability (d) following 24 and 120 h of cyclic mechanical stretch in A549 alveolar epithelial cells. Note: *P < 0.05 versus normocapnia for each condition. Abbreviations: Sham unstretched cells

Full size image

Effect of pre- versus post-conditioning with HCA

Pre-conditioning with HCA was less effective compared to post-conditioning. Pre-conditioning modestly decreased NF-κB activation (Fig. 3a), but did not alter the effect of high stretch on IL-8 production (Fig. 3b), LDH leakage (Fig. 3c), or cell survival (Fig. 3d). In contrast, exposure of the epithelial layers to HCA post-commencement of cell stretch had the same effect as exposure to HCA prior to and post-cyclic stretch.

Fig. 3
figure 3

Effect of pre- versus post-conditioning with HCA. Pre-conditioning with HCA modestly decreased NF-κB activation (a) but did not alter the effect of high stretch on IL-8 production (b), LDH leakage (c), or cell survival (d). In contrast, exposure of the epithelial layers to HCA post-commencement of cell stretch was as effective as exposure to HCA prior to and post-commencement of cyclic stretch. Note: *P < 0.05 versus normocapnia; † P < 0.05 versus HCA-pre-conditioning. Abbreviations: Sham unstretched cells under normocapnia, Normo high cyclical stretch with normocapnia, HCA-pre hypercapnia exposure prior to cell stretch, HCA-post hypercapnia exposure commenced after start of cell stretch, HCA-combined hypercapnia exposure both prior to and during cell stretch high cyclical stretch with hypercapnia

Full size image

HCA inhibits stretch-induced canonical NF-κB activation

HCA attenuates stretch-induced IκBα decrease

Cyclic epithelial stretch decreased cytosolic concentrations of the IκBα protein, which normally binds and inactivates NF-κB, at 15, 30, and 60 min, with restoration at 120 min (Fig. 4a). This decrease in cytosolic IκBα was abolished by HCA (Fig. 4a).

Fig. 4
figure 4

Effects of HCA on NF-κB pathway mediated via IκBα. ELISA with embedded Western blot demonstrating that HCA prevents the stretch-induced decrement in cytoplasmic concentrations of the NF-κB inhibitor IκBα (a). Direct overexpression of IκBα attenuates the deleterious effects of stretch in normocapnia-exposed epithelial layers, decreasing NF-κB activation (b), reducing epithelial LDH leakage (c) and preserving cell viability (d). HCA did further reduce medium LDH but had no effect on NF-κB or on cell viability, in the presence of prior IκBα overexpression. Note: *P < 0.05 versus normocapnia-empty vector, † P < 0.05 versus normocapnia-IκBα-SR. Abbreviations: Normocapnia-Sham unstretched cells with normocapnia, Normocapnia-Stretch high cyclical stretch with normocapnia, HCA-Sham unstretched cells with normocapnia, HCA-Stretch high cyclical stretch with hypercapnia

Full size image

IκBα “occludes” the effect of HCA

Overexpression of IκBα directly attenuated the increase in stretch-induced NF-κB activation (Fig. 4b). IκBα “occluded” the effect of HCA on NF-κB activation, in that there was no further decrease in NF-κB activation in the presence of HCA in cells overexpressing IκBα (Fig. 4b). IκBα overexpression directly attenuated the increase in stretch-induced cell injury, as measured by LDH concentrations, and largely, but not completely, “occluded” this protective effect of HCA (Fig. 4c). IκBα overexpression also directly attenuated the decrease in stretch-induced cell viability and again “occluded” this protective effect of HCA (Fig. 4d).

Acidosis versus CO2 in stretch-induced epithelial injury

Cyclic stretch activated NF-κB at 72 hours in A549 epithelial layers (Fig. 5a). Both HCA and metabolic acidosis (MA), but not buffered hypercapnia (BHC), inhibited this stretch-induced NF-κB activation (Fig. 5a). Cyclic stretch-induced alveolar epithelial IL-8 secretion was attenuated by acidosis—both hypercapnic and metabolic—but not by BHC (Fig. 5b). Both HCA and MA abolished cyclic stretch-induced cell membrane injury but BHC was not protective (Fig. 5c). The decrease in cell survival induced by cell stretch was also abolished by acidosis—both HCA and MA—but BHC was ineffective (Fig. 5d).

Fig. 5
figure 5

The effects of HCA appear to be mediated via pH-dependent effects rather than via CO2. Metabolic acidosis (MA), at a pH comparable to that seen with HCA, decreases stretch-induced activation of NF-κB (a), decreases IL-8 secretion (b), reduces epithelial LDH leakage (c), and maintains cell viability (d) following cyclic mechanical stretch. In contrast, these effects are abrogated by buffering of the hypercapnic acidosis (BHC). Note: *P < 0.05 versus normocapnia. Abbreviations: Sham unstretched cells under normocapnia, Normo high cyclical stretch with normocapnia, HCA high cyclical stretch with hypercapnia, MA high cyclical stretch with metabolic acidosis, BHC high cyclical stretch with buffered hypercapnia

Full size image

Discussion

HCA is a consequence of respiratory failure and is particularly frequent in critically ill patients managed with conventional “protective” ventilation strategies. NF-κB is an important transcription factor that is activated in the setting of inflammation and repair and is central to innate immunity [31]. Ventilatory strategies incorporating permissive HCA have been shown to enhance patient survival in a clinical setting of ARDS by alleviating stretch-induced injury [3, 32–34]. While the associated HCA is generally considered a bystander, work from our group and others has demonstrated the potential for HCA to exert potent biologic effects in preclinical lung injury models, with several key effects mediated via inhibition of NF-κB signaling. This current work demonstrates that HCA reduces stretch-induced bronchial and alveolar epithelial cell NF-κB activation and consequent inflammation, injury, and cell death. These protective effects of HCA are mediated via the inactivation of the canonical NF-κB pathway and appear to be mediated by the acidosis rather than the CO2 per se.

Deleterious effects of excessive cell stretch

Our findings confirm the deleterious effects of prolonged excessive cell stretch on the alveolar epithelium. Positive pressure ventilation can severely injure the lungs of already compromised ARDS patients, and here, we show that excessive cell stretch severely injures both bronchial and alveolar cells by activation of NF-κB, a finding which confirms and expands on previously published data [27]. Interestingly, our work also shows that HCA can alleviate this cell injury and inflammation following both short- and long-term stretch injury, an important finding from a clinical perspective, suggesting that permissive/therapeutic hypercapnia could be of benefit to the patient throughout the ventilation period.

Protective effects of HCA in cell stretch injury

Furthermore, our findings demonstrate that HCA directly attenuates cell stretch-induced injury. HCA reduced stretch-induced bronchial and alveolar epithelial stretch-induced inflammation, as evidenced by pulmonary IL-8 secretion. HCA also attenuated cellular injury and maintained cell membrane integrity, as evidenced by reduced concentrations of LDH, an intracellular enzyme which is released into the medium during cell disruption or necrosis. HCA also maintained cellular viability, preventing stretch-induced cell death.

HCA attenuates stretch-induced NF-κB activation

In this study, we have shown that mechanical stretch triggers the NF-κB signaling pathway. NF-κB activation in turn results in epithelial inflammation, loss of cell membrane integrity, and ultimately in cell death. When IκBα is directly overexpressed in the epithelial layers, it reduced stretch-induced NF-κB activation, decreased epithelial IL-8 production, maintained cell membrane integrity, and reduced stretch-induced cell death, demonstrating that these deleterious effects of cyclic stretch are mediated via NF-κB activation. HCA inhibited NF-κB activation, decreasing the detrimental effects of stretch injury.

Mechanism by which HCA inhibits NF-κB pathway

IκBα is normally located in the cytoplasm, where it binds to and inactivates NF-κB. When the canonical NF-κB pathway is activated, the IKK-complex phosphorylates IκBα, which is then subsequently degraded. In these studies, HCA blocked the stretch-induced decrease of cytosolic concentrations of IκBα. In subsequent studies, the effect of HCA was comparable to that seen with direct IκBα overexpression, while the combination of IκBα overexpression and HCA was also comparably effective. Overexpression of IκBα greatly reduced or entirely abrogated the effect of HCA on stretch-induced inflammation, cell membrane dysfunction, or cell viability. This suggests that IκBα “occluded” the effect of HCA, suggesting that these effects of HCA are mediated largely via inhibition of the canonical NF-κB pathway.

These data support and extend prior findings by our group and others. Takeshita et al. showed HCA could inhibit endotoxin-induced canonical NF-κB activation and IκBα degradation in human pulmonary artery endothelial cells [30]. We have recently demonstrated that HCA directly reduces the kinase activity of the IKK complex and reduces IKK-mediated phospho-inactivation of IκBα [28], a finding entirely consistent with the findings from these studies. Taken together, these findings suggest that inhibition of the IKK-IκBα interaction constitutes a key mechanism by which HCA suppresses canonical NF-κB activation in response to stimuli such as endotoxin or high stretch.

Role of acidosis versus CO2

The beneficial effects of HCA on stretch-induced pulmonary injury appear to be mediated by the pH change, i.e. the acidosis that is caused by the HCA rather than the increase in CO2 per se. In fact, buffering the HCA completely abolished its effect on the NF-κB activation pathway and abrogated the protective effects on inflammation, cell membrane leak, and cell viability. This contrasts somewhat with the findings of Takeshita et al., who demonstrated that buffered hypercapnia inhibited endotoxin-induced canonical NF-κB activation by suppressing IκBα degradation [30]. Furthermore, the inhibitory effects of HCA on wound healing, which were mediated at least in part via inhibition of NF-κB, appeared to be a function of the hypercapnia rather than the acidosis per se. Cummins et al., showed that hypercapnia inhibited endotoxin induced NF-κB activation in fibroblasts via activation of the non-canonical pathway [35]. Likely explanations for the divergent findings include the mechanism of injury—stretch versus endotoxin induced—and the cell types studied—epithelium versus endothelium and fibroblasts.

Limitations

There are some of limitations to these studies. Our use of non-stretched cells as controls for these experiments was based on our demonstration that physiologic stretch did not produce any evidence of cell inflammation or injury (Additional file 2: Figure e1). While we have previously examined the effects of greater degrees of HCA than those used in the current study [27], we have not examined the efficacy of less severe HCA.

Conclusions

We report that HCA enhances cell viability and protects against epithelial damage after early or prolonged stretch-induced injury by inhibiting canonical NF-κB activation through a pH-dependent mechanism. These findings further our knowledge in regard the effects of HCA on the NF-κB pathway and its effects in a mechanical stretch injury setting. The demonstration that direct inhibition of the NF-κB pathway is protective in other diverse pre-clinical non-septic ARDS models [24–26] but is potentially deleterious in sepsis-induced ARDS [36] underlines the importance of understanding the interaction between HCA and this pivotal pathway.

Key message

Hypercapnic acidosis attenuates cyclic mechanical stretch-induced pulmonary epithelial inflammation, injury, and death via inhibition of stretch activation of canonical NF-κB pathway activation. This effect was pH rather than CO2 dependent. The precise mechanism by which HCA inhibits NF-κB activation appears to be via attenuation of stretch-induced phospho-inactivation of the cytosolic NF-κB inhibitor IκBα, thereby preventing the release of the activated NF-κB dimer.

References

  1. Matthay MA, Ware LB, Zimmerman GA (2012) The acute respiratory distress syndrome. J Clin Invest 122:2731–2740

    Article  CAS  PubMed  PubMed Central  Google Scholar

  2. Slutsky AS, Ranieri VM (2014) Ventilator-induced lung injury. N Engl J Med 370:980

    PubMed  Google Scholar

  3. (2000) Ventilation with lower tidal volumes as compared with traditional tidal volumes for acute lung injury and the acute respiratory distress syndrome. The Acute Respiratory Distress Syndrome Network. N Engl J Med 342:1301–1308

  4. Bellani G, Laffey JG, Pham T, Fan E, Brochard L, Esteban A, Gattinoni L, van Haren F, Larsson A, McAuley DF, Ranieri M, Rubenfeld G, Thompson BT, Wrigge H, Slutsky AS, Pesenti A; LUNG SAFE Investigators; ESICM Trials Group. Epidemiology, Patterns of Care, and Mortality for Patients With Acute Respiratory Distress Syndrome in Intensive Care Units in 50 Countries. JAMA. 2016;315(8):788-800.

  5. Hickling KG, Walsh J, Henderson S, Jackson R (1994) Low mortality rate in adult respiratory distress syndrome using low-volume, pressure-limited ventilation with permissive hypercapnia: a prospective study. Crit Care Med 22:1568–1578

    Article  CAS  PubMed  Google Scholar

  6. Laffey JG, Kavanagh BP (1999) Carbon dioxide and the critically ill—too little of a good thing? (Hypothesis paper). Lancet 354:1283–1286

    Article  CAS  PubMed  Google Scholar

  7. Shibata K, Cregg N, Engelberts D, Takeuchi A, Fedorko L, Kavanagh BP (1998) Hypercapnic acidosis may attenuate acute lung injury by inhibition of endogenous xanthine oxidase. Am J Respir Crit Care Med 158:1578–1584

    Article  CAS  PubMed  Google Scholar

  8. Laffey JG, Honan D, Hopkins N, Hyvelin JM, Boylan JF, McLoughlin P (2004) Hypercapnic acidosis attenuates endotoxin-induced acute lung injury. Am J Respir Crit Care Med 169:46–56

    Article  PubMed  Google Scholar

  9. Laffey JG, Engelberts D, Kavanagh BP (2000) Buffering hypercapnic acidosis worsens acute lung injury. Am J Resp Crit Care Med 161:141–146

    Article  CAS  PubMed  Google Scholar

  10. Laffey JG, Tanaka M, Engelberts D, Luo X, Yuan S, Tanswell AK, Post M, Lindsay T, Kavanagh BP (2000) Therapeutic hypercapnia reduces pulmonary and systemic injury following in vivo lung reperfusion. Am J Respir Crit Care Med 162:2287–2294

    Article  CAS  PubMed  Google Scholar

  11. Laffey JG, Jankov RP, Engelberts D, Tanswell TK, Post M, Lindsay T, Mullen JB, Romaschin A, Stephens D, McKerlie C, Kavanagh BP (2003) Effects of therapeutic hypercapnia on mesenteric ischemia—reperfusion injury. Am J Respir Crit Care Med 168:1383–1390

    Article  PubMed  Google Scholar

  12. Laffey JG, Engelberts D, Duggan M, Veldhuizen R, Lewis JF, Kavanagh BP (2003) Carbon dioxide attenuates pulmonary impairment resulting from hyperventilation. Crit Care Med 31:2634–2640

    Article  PubMed  Google Scholar

  13. Sinclair SE, Kregenow DA, Lamm WJ, Starr IR, Chi EY, Hlastala MP (2002) Hypercapnic acidosis is protective in an in vivo model of ventilator-induced lung injury. Am J Respir Crit Care Med 166:403–408

    Article  PubMed  Google Scholar

  14. Doerr CH, Gajic O, Berrios JC, Caples S, Abdel M, Lymp JF, Hubmayr RD (2005) Hypercapnic acidosis impairs plasma membrane wound resealing in ventilator-injured lungs. Am J Respir Crit Care Med 171:1371–1377

    Article  PubMed  PubMed Central  Google Scholar

  15. O’Toole D, Hassett P, Contreras M, Higgins BD, McKeown ST, McAuley DF, O’Brien T, Laffey JG (2009) Hypercapnic acidosis attenuates pulmonary epithelial wound repair by an NF-kappaB dependent mechanism. Thorax 64:976–982

    Article  PubMed  Google Scholar

  16. Chonghaile MN, Higgins BD, Costello J, Laffey JG (2008) Hypercapnic acidosis attenuates lung injury induced by established bacterial pneumonia. Anesthesiology 109:837–848

    Article  PubMed  Google Scholar

  17. Ni Chonghaile M, Higgins BD, Costello JF, Laffey JG (2008) Hypercapnic acidosis attenuates severe acute bacterial pneumonia-induced lung injury by a neutrophil-independent mechanism. Crit Care Med 36:3135–3144

    Article  PubMed  Google Scholar

  18. O’Croinin DF, Hopkins NO, Moore MM, Boylan JF, McLoughlin P, Laffey JG (2005) Hypercapnic acidosis does not modulate the severity of bacterial pneumonia-induced lung injury. Crit Care Med 33:2606–2612

    Article  PubMed  Google Scholar

  19. Costello J, Higgins B, Contreras M, Chonghaile MN, Hassett P, O’Toole D, Laffey JG (2009) Hypercapnic acidosis attenuates shock and lung injury in early and prolonged systemic sepsis. Crit Care Med 37:2412–2420

    Article  CAS  PubMed  Google Scholar

  20. Higgins BD, Costello J, Contreras M, Hassett P, O’Toole D, Laffey JG (2009) Differential effects of buffered hypercapnia versus hypercapnic acidosis on shock and lung injury induced by systemic sepsis. Anesthesiology 111:1317–1326

    Article  PubMed  Google Scholar

  21. Helenius IT, Krupinski T, Turnbull DW, Gruenbaum Y, Silverman N, Johnson EA, Sporn PH, Sznajder JI, Beitel GJ (2009) Elevated CO2 suppresses specific Drosophila innate immune responses and resistance to bacterial infection. Proc Natl Acad Sci U S A 106:18710–18715

    Article  CAS  PubMed  PubMed Central  Google Scholar

  22. O’Croinin DF, Nichol AD, Hopkins N, Boylan J, O’Brien S, O’Connor C, Laffey JG, McLoughlin P (2008) Sustained hypercapnic acidosis during pulmonary infection increases bacterial load and worsens lung injury. Crit Care Med 36:2128–2135

    Article  PubMed  Google Scholar

  23. Park GY, Christman JW (2006) Nuclear factor kappa B is a promising therapeutic target in inflammatory lung disease. Curr Drug Targets 7:661–668

    Article  CAS  PubMed  Google Scholar

  24. Ishiyama T, Dharmarajan S, Hayama M, Moriya H, Grapperhaus K, Patterson GA (2005) Inhibition of nuclear factor kappaB by IkappaB superrepressor gene transfer ameliorates ischemia-reperfusion injury after experimental lung transplantation. J Thorac Cardiovasc Surg 130:194–201

    Article  CAS  PubMed  Google Scholar

  25. Chen LW, Egan L, Li ZW, Greten FR, Kagnoff MF, Karin M (2003) The two faces of IKK and NF-kappaB inhibition: prevention of systemic inflammation but increased local injury following intestinal ischemia-reperfusion. Nat Med 9:575–581

    Article  CAS  PubMed  Google Scholar

  26. Matsuda N, Hattori Y, Jesmin S, Gando S (2005) Nuclear factor-kappaB decoy oligodeoxynucleotides prevent acute lung injury in mice with cecal ligation and puncture-induced sepsis. Mol Pharmacol 67:1018–1025

    Article  CAS  PubMed  Google Scholar

  27. Contreras M, Ansari B, Curley G, Higgins BD, Hassett P, O’Toole D, Laffey JG (2012) Hypercapnic acidosis attenuates ventilation-induced lung injury by a nuclear factor-kappaB-dependent mechanism. Crit Care Med 40:2622–2630

    Article  CAS  PubMed  Google Scholar

  28. Masterson C, O’Toole D, Leo AM, McHale P, Horie S, Devaney J, Laffey JG, (2015) Effects and mechanisms by which hypercapnic acidosis inhibits sepsis induced canonical NF-κB signaling in the lung. Critical Care Medicine (in press)

  29. Jame AJ, Lackie PM, Cazaly AM, Sayers I, Penrose JF, Holgate ST, Sampson AP (2007) Human bronchial epithelial cells express an active and inducible biosynthetic pathway for leukotrienes B4 and C4. Clin Exp Allergy 37:880–892

    Article  CAS  PubMed  Google Scholar

  30. Takeshita K, Suzuki Y, Nishio K, Takeuchi O, Toda K, Kudo H, Miyao N, Ishii M, Sato N, Naoki K, Aoki T, Suzuki K, Hiraoka R, Yamaguchi K (2003) Hypercapnic acidosis attenuates endotoxin-induced nuclear factor-κB activation. Am J Respir Cell Mol Biol 29:124–132

    Article  CAS  PubMed  Google Scholar

  31. Moine P, McIntyre R, Schwartz M, Kaneko D, Shenkar R, Le Tulzo Y, Moore E, Abraham E (2000) NF-kappaB regulatory mechanisms in alveolar macrophages from patients with acute respiratory distress syndrome. Shock 13:85–91

    Article  CAS  PubMed  Google Scholar

  32. Kregenow DA, Rubenfeld GD, Hudson LD, Swenson ER (2006) Hypercapnic acidosis and mortality in acute lung injury. Crit Care Med 34:1–7

    Article  PubMed  Google Scholar

  33. Amato MB, Barbas CS, Medeiros DM, Magaldi RB, Schettino GP, Lorenzi-Filho G, Kairalla RA, Deheinzelin D, Munoz C, Oliveira R, Takagaki TY, Carvalho CR (1998) Effect of a protective-ventilation strategy on mortality in the acute respiratory distress syndrome. N Engl J Med 338:347–354

    Article  CAS  PubMed  Google Scholar

  34. Hickling KG, Walsh J, Henderson S, Jackson R (1994) Low mortality rate in adult respiratory distress syndrome using low-volume, pressure-limited ventilation with permissive hypercapnia: a prospective study. Crit Care Med 22:1530–1539

    Article  Google Scholar

  35. Cummins EP, Oliver KM, Lenihan CR, Fitzpatrick SF, Bruning U, Scholz CC, Slattery C, Leonard MO, McLoughlin P, Taylor CT (2010) NF-kappaB links CO2 sensing to innate immunity and inflammation in mammalian cells. J Immunol 185:4439–4445

    Article  CAS  PubMed  Google Scholar

  36. Devaney J, Curley GF, Hayes M, Masterson C, Ansari B, O’Brien T, O’Toole D, Laffey JG (2013) Inhibition of pulmonary nuclear factor kappa-B activity decreases acute but worsens prolonged pneumonia induced acute lung injury. Crit Care 17:R82

    Article  PubMed  PubMed Central  Google Scholar

Download references

Funding support

This work was supported by the funding from the European Research Council, Brussels, Belgium, under the Framework 7 Programme (Grant No: ERC-2007-StG 207777) and the Health Research Board, Dublin, (Grant No: POR-2011-1061). JG Laffey is funded by the Canadian Institute of Health Research and Physicians Services Incorporated and holds a Merit Award from the Department of Anesthesia, University of Toronto, Ontario, Canada.

Data from this manuscript was presented at the American Thoracic Society Annual Scientific Meetings in May 2013.

Author information

Author notes

    Authors and Affiliations

    1. Discipline of Anaesthesia, School of Medicine, Clinical Sciences Institute, National University of Ireland, Galway, Ireland

      Shahd Horie, Bilal Ansari, James Devaney, Michael Scully & Daniel O’Toole

    2. Regenerative Medicine Institute, National University of Ireland, Galway, Ireland

      Shahd Horie, Bilal Ansari, Claire Masterson, James Devaney, Michael Scully, Daniel O’Toole & John G. Laffey

    3. Department of Anesthesia, Critical Illness and Injury Research Centre, Keenan Research Centre for Biomedical Science, St Michael’s Hospital, University of Toronto, Toronto, Canada

      Claire Masterson & John G. Laffey

    Authors
    1. Shahd Horie
      View author publications

      You can also search for this author in PubMed Google Scholar

    2. Bilal Ansari
      View author publications

      You can also search for this author in PubMed Google Scholar

    3. Claire Masterson
      View author publications

      You can also search for this author in PubMed Google Scholar

    4. James Devaney
      View author publications

      You can also search for this author in PubMed Google Scholar

    5. Michael Scully
      View author publications

      You can also search for this author in PubMed Google Scholar

    6. Daniel O’Toole
      View author publications

      You can also search for this author in PubMed Google Scholar

    7. John G. Laffey
      View author publications

      You can also search for this author in PubMed Google Scholar

    Corresponding author

    Correspondence to John G. Laffey.

    Additional information

    Competing interests

    The authors declare that they have no competing interests.

    Authors’ contributions

    SH and BA performed the experiments and assays, analyzed the data, drafted the manuscript, and agreed to the final submitted version. CM, JD, and MS assisted with the experiments and assays, contributed to drafting the manuscript, and agreed to the final submitted version. DOT and JL conceived and designed the experiments, analyzed the data, drafted the manuscript, and agreed to the final submitted version.

    Daniel O’Toole and John G. Laffey are joint senior authors.

    Additional files

    Additional file 1: Figure S1.

    The IkBa-SR gene suppressed IL-1b and TNF-a activation of NF-kB. NF-κB activation induced by IL-1b and TNF-a activation (both 20 ng/ml) was attenuated by IkBa-SR gene overexpression in alveolar epithelial A549 cells. (JPG 72 kb)

    Additional file 2: Figure S2.

    Physiologic stretch does not cause pulmonary epithelial inflammation, injury or cell death. The application of 10 % equibiaxial cyclic stretch for 24 hours did not activate NF-kB (Panel A), increase interleukin-8 secretion (Panel B), alter membrane integrity as assessed by epithelial LDH leakage (Panel C), or affect cell viability (Panel D) in alveolar epithelial A549 cells, when compared to unstretched cells. (JPG 200 kb)
