Lung perfusion during veno-venous extracorporeal membrane oxygenation in a model of hypoxemic respiratory failure

Abstract

Background

Veno-venous extracorporeal membrane oxygenation (ECMO) provides blood oxygenation and carbon dioxide removal in acute respiratory distress syndrome. However, during ECMO support, the native lungs still play an important role in gas exchange, functioning as a second oxygenator in series with ECMO. The hypoxic vasoconstriction mechanism diverts regional blood flow within the lungs away from regions with low oxygen levels, optimizing ventilation/perfusion matching. ECMO support has the potential to reduce this adaptive pulmonary response and worsen the ventilation/perfusion mismatch by raising venous oxygen partial pressure. Thus, the objective of this study was to evaluate the effect of ECMO on regional pulmonary perfusion and pulmonary hemodynamics during unilateral ventilation and posterior lung collapse.

Methods

Five Agroceres pigs were instrumented, monitored and submitted to ECMO. We used the Electrical Impedance Tomography (EIT) to evaluate lung ventilation and perfusion in all protocol steps. Effects of ECMO support on pulmonary hemodynamics and perfusion involving two different scenarios of ventilation/perfusion mismatch: (1) right-lung selective intubation inducing collapse of the normal left lung and (2) dorsal lung collapse after repeated lung lavage. Data including hemodynamics, respiratory, lung perfusion/ventilation, and laboratory data over time were analyzed with a mixed generalized model using the subjects as a random factor.

Results

The initiation of ECMO support provided a significant reduction in Mean Pulmonary Artery Pressure (PAPm) in both situations of ventilation/perfusion mismatch. However, distribution of lung perfusion did not change with the use of ECMO support.

Conclusions

We found that the use of ECMO support with consequent increase in venous oxygen pressure induced a significant drop in PAPm with no detectable effect on regional lung perfusion in different scenarios of ventilation/perfusion mismatch.

Background

Veno-venous extracorporeal membrane oxygenation (ECMO) is a respiratory support characterized by blood oxygenation and carbon dioxide (CO2) removal by mechanically pumping the blood through a membrane, where diffusion of gases occurs. The main objective of this therapy is to allow the application of protective mechanical ventilation in patients with severe acute respiratory distress syndrome (ARDS) and, at the same time, to ensure adequate gas exchange [1,2,3,4]. However, during ECMO support, the native lungs still play an important role in gas exchange, functioning as a second oxygenator in series with ECMO. Moreover, despite ECMO support, hypoxemia may still occur in up to 20% of ARDS patients, and a stepwise approach including the optimization of residual lung function may be appropriate [5, 6]. As the lung injury gradually reverses, gas exchange by the lungs progressively improves until it becomes possible to remove the extracorporeal support.

To avoid large mismatches between ventilation and perfusion ventilation/perfusion mammals invoke a mechanism called hypoxic pulmonary vasoconstriction (HPV). It consists of vasoconstriction of arterioles that feed poorly oxygenated lung regions, redirecting blood flow to better ventilated lung areas with consequent attenuation of the ventilation/perfusion mismatch [7] For a given amount of lung collapse, typical in patients with ARDS, HPV can significantly attenuate the blood gases derangement by lowering shunt. The main modulating factor of this adaptive pulmonary vasoconstriction is the local partial pressure of oxygen through venous oxygen partial pressure (PvO2) and alveolar oxygen partial pressure [8,9,10]. Also, arterial pH and carbon dioxide partial pressure (PaCO2) act as cofactors, modulating HPV [11]. In this context, ECMO has the potential to weaken this adaptive pulmonary response and worsen the ventilation/perfusion mismatch by raising venous oxygen pressure (PvO2), with possible reversal of HPV. It has been previously described that high values of PvO2 with the use of a bubble oxygenator induce a complete reversal of HPV [12]. However, at the bedside, physicians usually set the ECMO support to reach normal values of PvO2 and near normal values of PaO2. Thus, the behavior of lung perfusion and lung hemodynamics with current ECMO support aiming at normal values of PvO2, is poorly understood. Knowing the behavior of pulmonary perfusion and hemodynamics during different scenarios of lung/perfusion mismatch may help in the treatment of hypoxemia despite ECMO support and, also, in the process of withdrawal from ECMO.

Therefore, the objective of this study was to evaluate the effect of current ECMO support and the consequent increase in PvO2 on pulmonary perfusion and pulmonary hemodynamics during unilateral ventilation and posterior lung collapse.

Methods

This research was carried out in compliance with the principles of the National Institute of Health (1985) and The American Physiological Society (1995) regarding the care, handling, and use of laboratory animals, following approval by the Ethics and Research Committee of Hospital Sírio Libanês and Hospital das Clínicas HC-FMUSP (University of São Paulo School of Medicine).

Surgical preparation of the animals

The ambient temperature was kept between 24 and 26 °C throughout the procedure. Five Agroceres pigs weighing between 30 and 35 kg were pre-anesthetized with intramuscular 0.5 mg/kg midazolam and 5 mg/kg ketamine. Subsequently, the animals were subjected to orotracheal intubation and connected to the mechanical ventilator (Servo-i, Maquet, Germany) with the following parameters: PEEP = 5 cmH2O, tidal volume = 8 ml/kg, FiO2 = 1.0, and respiratory rate titrated to an end-tidal CO2 pressure in the exhaled air (EtCO2) between 40 and 50 mmHg. All animals were monitored through a central venous catheter in the femoral vein, an arterial catheter in the femoral artery, a pulmonary artery catheter inserted through the external jugular vein, and cystostomy via a midline laparotomy. Sedation and analgesia were maintained throughout the experiment with 8 mg/kg/hour continuous intravenous (IV) propofol and 10 mcg/kg/hour continuous IV fentanyl.

The animals' central temperature was maintained between 37 and 39 °C, initially using a thermal mattress and blanket, and after the start of ECMO, through the heat generated by the system using a cardioplegia heater pump. Upon the start of ECMO, a bolus of 5000 IU of heparin, followed by a continuous infusion of 1000 IU/h, was administered to maintain systemic anticoagulation.

ECMO cannulation

The external jugular vein was punctured using ultrasound guidance to introduce the ECMO return cannula (25 cm cannula, Edwards Lifesciences, Irvine, CA, USA). The final positioning of the cannula was checked via ultrasound-guided transhepatic visualization of the distal end of the cannula near the opening of the right atrium. Using a similar technique, the femoral vein was punctured to insert the ECMO drainage cannula (55 cm cannula, Edwards Lifesciences, Irvine, CA, USA). Both final positions of the cannulae were checked with the aid of ultrasonography to reduce blood recirculation during ECMO. We used a polymethilpenthene membrane (Biocube 4000) from Nipro Medical corporation in all experiments.

Additional file 1: Figs. S1–S3 represent a schematic drawing of the animals without ECMO circuit connected, with ECMO circuit connected but without gas flow (Gas Flow OFF), and with ECMO circuit connected with gas flow (Gas Flow ON).

Respiratory and hemodynamic monitoring

Expired minute volume, tidal volume, respiratory rate, peak pressure, plateau pressure, positive end-expiratory pressure (PEEP), and inspired oxygen fraction were measured continuously through the mechanical ventilator. EtCO2 was measured using a volumetric capnograph connected to the orotracheal tube, and the animals' peripheral oxygen saturation (SpO2) was monitored through pulse oximetry. Arterial blood gases were monitored by collecting blood gas samples and analyzing them with the Radiometer ABL 800 equipment.

Heart rate, mean arterial pressure (MAP), central venous pressure, and mean pulmonary artery pressure (PAPm) were measured and displayed continuously through a multiparametric monitor (DX 2020, Dixtal, São Paulo, Brazil). Central venous saturation and cardiac output were measured using spectrophotometry and thermodilution, respectively (Vigilance®, Edwards Lifesciences, Irvine, CA, USA). Hypotension episodes with a MAP < 65 mmHg were treated with a 250 mL bolus of saline, up to a total of 75–100 mL/kg and with norepinephrine thereafter.

Monitoring of pulmonary ventilation and perfusion

Pulmonary ventilation and perfusion were monitored using electrical impedance tomography (EIT) (Timpel Enlight 1800) as previously described [13, 14]. We used the first-pass indicator technique for perfusion measurements after the ventilator transitioned to continuous positive airway pressure (CPAP) mode, maintaining the same PEEP value. A contrast agent for the EIT, the indicator consisted of a 10 mL bolus of 20% NaCl, injected in approximately 2–4 s in the right atrium through the pulmonary artery catheter, 5 s after the start of CPAP. ECMO blood flow was briefly interrupted immediately before injection to avoid draining the contrast agent into the ECMO circuit.

Calculations involved in the experiment

Pulmonary Shunt Fraction (%) = (CcO2 − CvO2) × 100 / (CcO2 − CaO2)

CaO2 = 1.36 × Hb × SaO2 / 100 + 0.0031 × PaO2

CvO2 = 1.36 × Hb × SvO2 / 100 + 0.0031 × PvO2

CcO2 = 1.36 × Hb × 1 / 100 + 0.0031 × PcapO2

PcapO2 = (694 − 46) × FiO2 / 100 – PaCO2/RQ

  • PaO2, PvO2 and PcapO2 are the arterial, venous and capillary oxygen partial pressures, respectively. PaCo2 corresponds to arterial partial pressure of carbon dioxide.

  • FiO2 is the fraction of inspired oxygen.

  • RQ is the respiratory quotient, assumed to be 0.8.

  • CcO2, CvO2 e CaO2 corresponds to capillary, venous and arterial oxygen content, respectively.

Stages of the study procedure

The study was divided into 10 stages described below (Fig. 1). These different stages aimed to create ventilation/perfusion mismatches in both normal and sick lungs to describe the degree to which the lung residual function could be worsened by the impairment of HPV caused by ECMO. Because we performed sequential interventions in all animals, we included some stages that were meant to allow the return to the previous condition after an intervention, characterizing an ON/OFF phenomenon, which supports causality even in this type of study design.

Fig. 1
figure 1

Flowchart showing the stages of the experiment. W/O denotes without, ECMO denotes extracorporeal membrane oxygenation

After switching from one stage to the next, the animals remained without further intervention for a period of 1 h to allow the stabilization of physiological parameters before the data collection. At the end of each stage, the distribution of ventilation and perfusion to the anterior, posterior, right, and left regions of the animals' lungs were recorded using EIT. Hemodynamic and respiratory variables, as well as extracorporeal support parameters and arterial gas analyses were recorded.

Baseline stage: ECMO OFF + bilateral ventilation

After initial stabilization, we adjusted mechanical ventilator settings with the following parameters: PEEP = 5 cmH2O, tidal volume = 6 ml/kg, FiO2 to keep arterial saturation above 90% and respiratory rate titrated to an end-tidal CO2 pressure in the exhaled air (EtCO2) between 40 and 50 mmHg. We collected baseline data 1 h after changing the parameters.

Stage 1: ECMO OFF + unilateral ventilation

The right main bronchus of the animal was selectively intubated, resulting in atelectasis and collapse of the left lung. The collapse was confirmed by reduction of ventilation of the atelectatic lung to less than 5–10% of the total, as visualized by EIT. Respiratory rate was set at 35 ipm and tidal volume adjusted to maintain normocapnia (PaCO2 between 35 and 45 mmHg) and as needed to maintain a plateau pressure of less than 30 cm H2O. FiO2 was titrated to SpO2 > 80–85 to simulate arterial saturation and PvO2 values in ARDS patients with ECMO support.

Stage 2: ECMO OFF + bilateral ventilation

Bilateral ventilation was resumed by repositioning the orotracheal tube. Ventilation parameters were set to maintain a tidal volume of 6 ml/kg and a plateau pressure below 30 cm H2O. FiO2 was kept stable, and the respiratory rate was adjusted to maintain normocapnia.

Stage 3: ECMO ON + gas flow OFF + bilateral ventilation

Connection of the extracorporeal circuit to the animals and start of blood flow at a rate of 500 ml/min, until the entire circuit was filled with blood from the animal. Then, the flow was progressively increased (in increments of 500 ml/min every minute) until it reached approximately 80 ml/kg. Ventilation parameters were kept stable in relation to the previous stage.

Stage 4: ECMO ON + gas flow ON + bilateral ventilation

Start of gas flow through the extracorporeal circuit to allow gas exchange via ECMO with the objective of evaluate if initiation of ECMO support and gas flow could influence ventilation and perfusion analysis in a normal lung.

Stage 5: ECMO ON + gas flow OFF + unilateral ventilation

Selective intubation of the right main bronchus was again performed, resulting in atelectasis and collapse of the left lung. Gas flow through the extracorporeal circuit was interrupted so that there was no gas exchange through ECMO. FiO2 was adjusted to keep SpO2 above 80–85%, and the respiratory rate was adjusted to maintain normocapnia.

Stage 6: ECMO ON + gas flow ON + unilateral ventilation

After the data collection from the previous stage, gas flow through the extracorporeal circuit was started to allow gas exchange via ECMO with the goals to maintain SpO2 > 90% and normocapnia.

Stage 7: ECMO OFF + gas flow OFF + unilateral ventilation

Condition identical to stage 5 to assess whether there was carryover effect from stage 6.

Stage 8: ECMO ON + gas flow OFF + bilateral ventilation + Posterior Lung Collapse

The orotracheal cannula was pulled out to the trachea to allow bilateral ventilation. Subsequently, 30–40 ml/kg of warm (37–38 °C) isotonic saline solution was used for repeated lung lavages until a PaO2/FiO2 was persistently (> 10 min) below 100 mmHg as previously described [15, 16]. Ventilator parameters were PEEP = 0 cmH2O, tidal volume = 6 ml/kg, respiratory rate = 35 ipm, and FiO2 = 1.

Stage 9: ECMO ON + gas flow ON + bilateral ventilation + Posterior Lung Collapse

The ventilation parameters were maintained. ECMO was adjusted through changes in blood and gas flow to maintain SpO2 > 90% and normocapnia.

Stage 10: ECMO ON + gas flow OFF + bilateral ventilation + Posterior Lung Collapse

With parameters and goals identical to stage 8, the objective of this stage was to evaluate if the removal of ECMO support, by shutting off the gas flow, would restore lung perfusion to its previous condition (stage 8).

The objectives of each comparison among different protocol stages are better describes in the Additional file 1.

At the end of the experiment, the animals were sacrificed by deepening anesthesia and subsequent administration of intravenous potassium chloride (66 mg/kg).

Statistical analysis

Our main outcome was lung perfusion changes between different study stages. Given the lack of published data on this outcome, we did not perform a sample size calculation. We chose to study five animals in this proof-of-concept study with granular and good quality data. Continuous data are presented as medians [interquartile range]. Continuous data of hemodynamic, respiratory, lung ventilation/perfusion, and laboratory data over time were analyzed using a mixed generalized model with the subjects as a random factor. P < 0.05 was considered statistically significant. R-Free statistical software (Vienna, Austria, 2009) was used for analysis and graph construction.

Results

We included five animals in the study and all data regarding lung ventilation and perfusion were available for analysis. We were able to induce lung collapse with selective intubation of the right lung, which led to near zero ventilation to the left lung. Perfusion to the collapsed lung was significantly reduced. Left lung collapse was also associated with a significant increase in mean pulmonary arterial pressure and in the fraction of pulmonary shunt (Additional file 1: Fig. S4). The initiation of blood circulation throughout the ECMO circuit did not affect the reduction in the left lung ventilation or perfusion with unilateral lung collapse (Additional file 1: Fig. S6).

Despite the increase in PvO2 after the start of ECMO, the left lung perfusion did not change (Fig. 2). Pulmonary shunt, however, increased significantly and was associated with a reduction in PAPm without any change in cardiac output. Data regarding hemodynamics and respiratory variables during stages 5, 6, and 7 are described in Table 1.

Fig. 2
figure 2

Left lung ventilation in % of lung ventilation (top left); left lung perfusion in % of pulmonary blood flow (top right); mean pulmonary artery pressure (bottom left); pulmonary shunt (bottom right). Gas flow OFF denotes no ECMO support due to the absence of gas flow. Gas flow ON denotes the initiation of ECMO support

Table 1 Comparison between stages 5 (S5), 6 (S6) and 7 (S7), that is, unilateral lung ventilation without gas flow (Stages 5 and 7) and with gas flow (Stage 6)

After lavage-induced lung injury and surfactant depletion (stages 8 through 10), we noticed a reduction in ventilation to dorsal regions secondary to lung collapse. Although this finding remained consistent throughout the 3 stages, we found an increase in posterior lung ventilation from Stage 8 to 10 due to progressive natural lung recruitment (Fig. 3). ECMO with Gas Flow ON increased the PvO2 and reduced the PAPm without any change in Cardiac Output (Fig. 3). In this scenario, we did not find a change in the pulmonary shunt or lung perfusion (Fig. 3). Data regarding hemodynamic and respiratory variables during stages 8, 9 and 10 are described in Table 2.

Fig. 3
figure 3

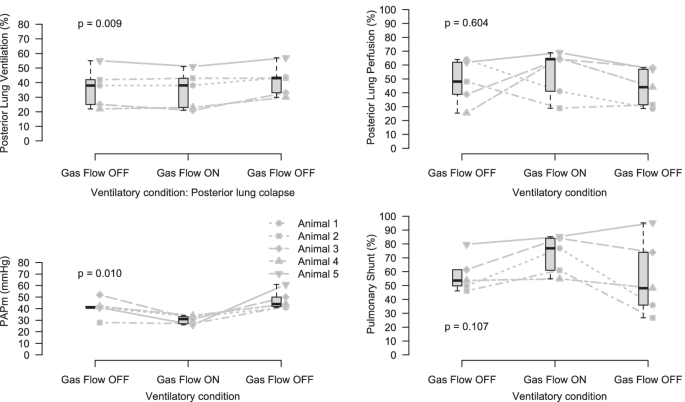

Posterior lung ventilation in % of lung ventilation (top left); posterior lung perfusion in % of pulmonary blood flow (top right); mean pulmonary artery pressure (bottom left); pulmonary shunt (bottom right). Gas flow OFF denotes no ECMO support due the absence of gas flow. Gas flow ON denotes the initiation of ECMO support

Table 2 Comparison between stages 8 (S8), 9 (S9) and 10 (S10), that is, variables with and without ECMO support after lung lavage

Discussion

The main findings of this study are summarized as follows: the use of ECMO support induced a significant drop in PAPm in different scenarios of ventilation/perfusion mismatch. Pulmonary shunt increased during ECMO support in unilateral lung ventilation. We were unable to demonstrate that ECMO support affected lung perfusion distribution.

In the first stages of the present study (without ECMO), we showed that left lung perfusion was significantly reduced after complete left lung atelectasis (Additional file 1: Fig. S4). Although with great biological variability, the HPV reflex has been shown to restore to some extent adequate lung ventilation/perfusion ratios as a compensatory mechanism [10]. We demonstrated an average reduction in perfusion to the atelectatic lung of 40%, a finding compatible with other descriptions in the literature [12, 13]. Redirection of perfusion to the right lung increased PAPm but was not enough to entirely avoid the increase in pulmonary shunt. Despite total collapse of one lung, shunt values averaged below 20%, reflecting the importance of this mechanism for adequate gas exchange under pathologic conditions.

The main determinants of HPV occurrence are alveolar partial pressure of oxygen and PvO2 [17]. By returning highly oxygenated blood to the right circulation, ECMO can significantly increase PvO2 [18], depending on the ECMO settings, especially blood flow and oxygen fraction of the sweep gas. For example, ECMO settings designed to increase PvO2 to above 100 mmHg have been shown to entirely revert HPV in mongrel dogs with left lung atelectasis [12]. Unlike previous studies, we designed our experiments to target arterial oxygenation at clinically relevant values with the aim to investigate whether the PvO2 values reached in these conditions were high enough to significantly impair HPV. In addition, another major contribution of our study to what they have already shown is the inclusion of a more clinically relevant scenario in which we induced dorsal lung collapse, mimicking dorsal atelectasis common during general anesthesia or in patients with ARDS.

With left lung atelectasis, median PvO2 values increased from 29 to 56 mmHg after the start of ECMO support. With ECMO, we found evidence to support the occurrence of at least some inhibition of HPV although we failed to demonstrate a significant restoration of perfusion to the atelectatic lung. There was a consistent reduction in PAPm together with an increase in pulmonary shunt during unilateral lung ventilation and regional lung hypoxia (Fig. 2), whereas PAPm reduced with no significant changes in pulmonary shunt with the posterior lung collapse that ensued after lung injury (Fig. 3). The progressive posterior lung recruitment over time may have attenuated changes in pulmonary shunt in the latter scenario. On the other hand, PAPm remained stable after initiation of ECMO support during bilateral ventilation in a situation without hypoxia (Additional file 1: Fig. S5). These findings suggest that HPV inhibition occurred not only in the region of interest being studied (either left lung or dorsal atelectasis) but also in other parts of the lungs. Alternatively, it is possible that EIT lacked sensitivity to detect changes in perfusion that might have occurred. In another experimental study, EIT was able to detect restoration of perfusion to atelectatic lungs after the infusion of intravenous nitroprusside [13]. This finding is suggestive that the regional inhibition of HPV caused by the increase in PvO2 was not as large as that induced by intravenous nitric oxide donors, if at all. It is interesting to notice that our findings of lack of perfusion redistribution with normal ranges of PvO2 are compatible with a previous report in mongrel dogs monitored using electromagnetic probes placed around the left pulmonary artery that failed to show perfusion changes to the atelectatic lung when PvO2 was below 100 mmHg.

The changes in shunt and PAPm cannot be overlooked. The almost 30% reduction in PAPm after the start of ECMO can certainly be of value in patients with increased right ventricle afterload, especially in those with acute cor pulmonale. Conversely, it is important to emphasize that this improvement in hemodynamics comes at a cost in terms of shunt, which can be clinically relevant in patients with arterial hypoxemia despite the ECMO support. In addition, this increase in shunt should be considered when assessing residual lung function in the scenario of ECMO withdrawal. It is possible that fine tuning sweep gas and blood flow may reduce pulmonary shunt and help in the process of weaning from ECMO.

Finally, we reasoned it would be important to reproduce previous findings with current ECMO technology, more biocompatible as compared to bubble oxygenators, which have fallen out of use. The improved biocompatibility activates to a less extent the inflammation cascade, which can influence the strength of HPV. In our study, we were able to confirm Domino et al. [12] findings with unilateral ventilation using current technology of ECMO support and expanded their results to a more clinically relevant scenario of posterior lung collapse, mimicking patients posterior lung collapse.

Our study has several limitations. First, the small number of animals may lead to a type II error. We should be able, however, to detect large changes in lung perfusion, which did not occur. Moreover, two previous studies with different strategies to evaluate lung perfusion were able to detect significant changes in pulmonary perfusion with a similar number of experiments [12, 13]. Second, EIT has not been used to estimate perfusion during ECMO support. For this reason, we performed the perfusion measurements during brief (seconds) pauses in ECMO blood flow, which could have affected HPV. Kinetics of HPV, however, are well-described and the effect usually takes many minutes to subside [19]. Also, we chose to change the mechanical ventilator FiO2 during the experiment to assure a low PvO2 throughout the experiment. It is debatable if concomitantly changing the mechanical ventilator FiO2 and ECMO parameters may influence the results. However, alveolar partial pressure of oxygen is close to zero in collapsed regions and changes in FiO2 between stages of interest were small and nonsignificant. Finally, we were able to induce posterior lung collapse with repeated pulmonary lung lavage with normal saline. However, this is not an appropriate model of ARDS, since systemic inflammation, which is crucial in pathophysiology of ARDS, was not present. Possibly, the absence of systemic inflammatory response may have influenced the occurrence of HPV, affecting our results.

Conclusions

We found that the use of ECMO support with consequent increase in PvO2 in different scenarios of ventilation/perfusion mismatch induces a significant drop in PAPm with a possible increase in pulmonary shunt. However, ECMO support did not affect the distribution of lung perfusion in conditions of ventilation/perfusion mismatch.

Availability of data and materials

Data are available by contacting the corresponding author.

References

  1. Romano TG, Mendes PV, Park M, Costa EL (2017) Extracorporeal respiratory support in adult patients. J Bras Pneumol 43(1):60–70

    Article  Google Scholar

  2. Mendes PV, Melro LMG, Li HY, Joelsons D, Zigaib R, Ribeiro JMDF et al (2019) Extracorporeal membrane oxygenation for severe acute respiratory distress syndrome in adult patients: a systematic review and meta-analysis. Rev Bras Ter Intensiva 31(4):548–554

    Article  Google Scholar

  3. Combes A, Slutsky AS, Brodie D (2018) ECMO for severe acute respiratory distress syndrome. N Engl J Med 379(11):1091–1092

    PubMed  Google Scholar

  4. Munshi L, Walkey A, Goligher E, Pham T, Uleryk EM, Fan E (2019) Venovenous extracorporeal membrane oxygenation for acute respiratory distress syndrome: a systematic review and meta-analysis. Lancet Respir Med 7(2):163–172

    Article  Google Scholar

  5. Munshi L, Kiss A, Cypel M, Keshavjee S, Ferguson ND, Fan E (2017) Oxygen thresholds and mortality during extracorporeal life support in adult patients. Crit Care Med 45(12):1997–2005

    Article  CAS  Google Scholar

  6. Nunes LB, Mendes PV, Hirota AS, Barbosa EV, Maciel AT, Schettino GP et al (2014) Severe hypoxemia during veno-venous extracorporeal membrane oxygenation: exploring the limits of extracorporeal respiratory support. Clinics (Sao Paulo) 69(3):173–178

    Article  Google Scholar

  7. Sylvester JT, Shimoda LA, Aaronson PI, Ward JP (2012) Hypoxic pulmonary vasoconstriction. Physiol Rev 92(1):367–520

    Article  CAS  Google Scholar

  8. Barer GR, Howard P, Shaw JW (1970) Stimulus-response curves for the pulmonary vascular bed to hypoxia and hypercapnia. J Physiol 211(1):139–155

    Article  CAS  Google Scholar

  9. Barer GR, Howard P, Shaw JW (1970) Sensitivity of pulmonary vessels to hypoxia and hypercapnia. J Physiol 206(2):25P-P26

    CAS  PubMed  Google Scholar

  10. Lumb AB, Slinger P (2015) Hypoxic pulmonary vasoconstriction: physiology and anesthetic implications. Anesthesiology 122(4):932–946

    Article  CAS  Google Scholar

  11. Barer GR, Shaw JW (1971) Pulmonary vasodilator and vasoconstrictor actions of carbon dioxide. J Physiol 213(3):633–645

    Article  CAS  Google Scholar

  12. Domino KB, Wetstein L, Glasser SA, Lindgren L, Marshall C, Harken A et al (1983) Influence of mixed venous oxygen tension (PVO2) on blood flow to atelectatic lung. Anesthesiology 59(5):428–434

    Article  CAS  Google Scholar

  13. Borges JB, Suarez-Sipmann F, Bohm SH, Tusman G, Melo A, Maripuu E et al (2012) Regional lung perfusion estimated by electrical impedance tomography in a piglet model of lung collapse. J Appl Physiol (1985). 112(1):225–36

    Article  Google Scholar

  14. Bluth T, Kiss T, Kircher M, Braune A, Bozsak C, Huhle R et al (2019) Measurement of relative lung perfusion with electrical impedance and positron emission tomography: an experimental comparative study in pigs. Br J Anaesth 123(2):246–254

    Article  CAS  Google Scholar

  15. Muellenbach RM, Kredel M, Zollhoefer B, Bernd Z, Johannes A, Kuestermann J et al (2009) Acute respiratory distress induced by repeated saline lavage provides stable experimental conditions for 24 hours in pigs. Exp Lung Res 35(3):222–233

    Article  CAS  Google Scholar

  16. Ballard-Croft C, Wang D, Sumpter LR, Zhou X, Zwischenberger JB (2012) Large-animal models of acute respiratory distress syndrome. Ann Thorac Surg 93(4):1331–1339

    Article  Google Scholar

  17. Theissen IL, Meissner A (1996) Hypoxic pulmonary vasoconstriction. Anaesthesist 45(7):643–652

    Article  CAS  Google Scholar

  18. Reis Miranda D, van Thiel R, Brodie D, Bakker J (2015) Right ventricular unloading after initiation of venovenous extracorporeal membrane oxygenation. Am J Respir Crit Care Med 191(3):346–348

    Article  Google Scholar

  19. Mendes PV, Park M, Maciel AT, e Silva DP, Friedrich N, Barbosa EV et al (2016) Kinetics of arterial carbon dioxide during veno-venous extracorporeal membrane oxygenation support in an apnoeic porcine model. Intensive Care Med Exp 4(1):1

    Article  Google Scholar
